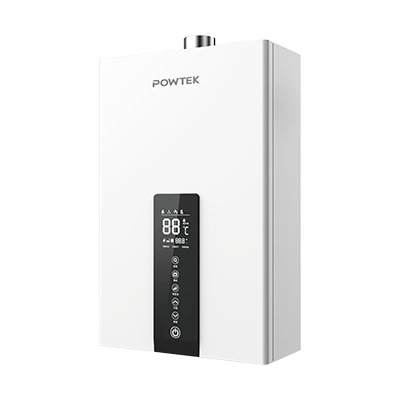

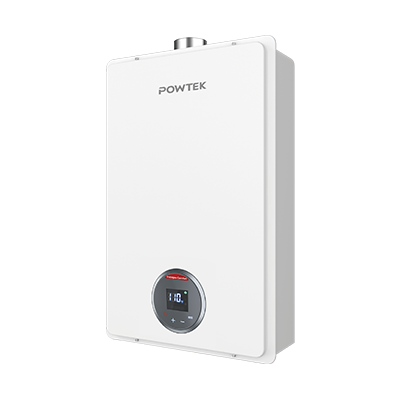

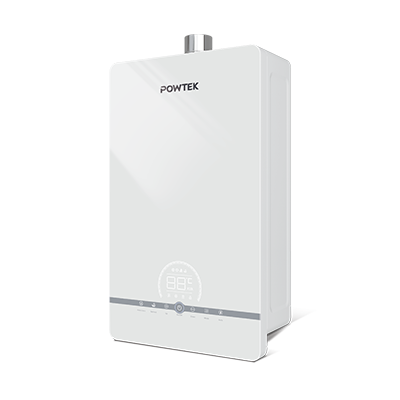

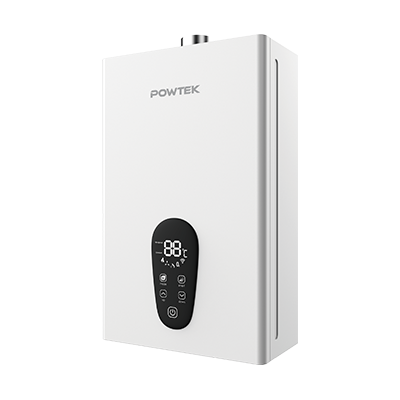

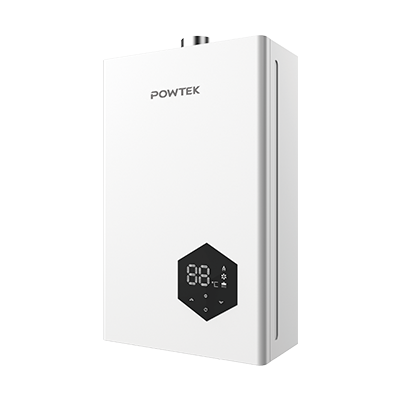

Constant Temperature Gas Water Heater-Balanced Constant Temp Series

Water flow sensor Dynamic LCD Screen
Environment-friendly and energy-saving
Intelligent thermostat
Precise temperature control technology
Multi-safety protection
Faulty auto-diagnosis function
CSA certification, suitable for America market

Product Detail

Rated heating power	19kW-25kW	30kW	34kW	25kW/30kW		35kW/42kW	42kW/50kW
Water flow(Ltr/min) △T=25K	10-13L	16L	13/18L	13/16L		16/20L	20/24L
Exhaust type	Forced/Balanced					Balanced
Exhaust pipe diameter (mm)	φ60					3/76.2
Water pressure range (bar)	0.025-0.8 Mpa					15-150 PSI
Unit dimensions W × H × D (mm)	520 × 330 × 155	580 × 370 × 155	570 × 380 × 145	550 × 360 × 150	640 × 400 × 165	608 × 394 × 185	666 × 435 × 185
Package dimensions W × H × D (mm)	720 × 415 × 255	780 × 455 × 255	735 × 445 × 240	730 × 445 × 250	820 × 480 × 260	790 × 475 × 255	815 × 510 × 255
Loading quantity 40HQ	875 pcs	740 pcs	850 pcs	825 pcs	650 pcs	730 pcs	640 pcs
