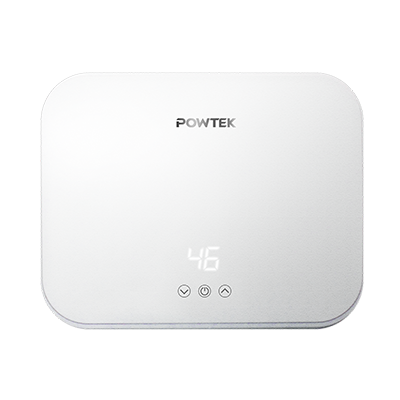

Electric Mini-tank Water Heater

Flame retardant material shell, mirage digital led dispaly
New generation self-developed aluminum alloy heating element, higher efficient heating exchange
Available temperature setting, instant and constant hot water supply
Power-off memory function for temperature setting
All copper inlet and outlet valve, 304 stainless steel internal pipe
Suitable for 360 direction of installation, meet any commercial and household usage scene
Patented self developed automatic energy-saving constant temp

Product Detail

Usage Scenario	Sink of Use					Point of Use
Wattag (kW)	4	4.5	5	5.5	6	6.5	7	7.5	8
Voltage (V)	240
Rated Current (A)	16.6	18.8	20.8	23	25	27	29.2	31.25	33.3
Required Number of Dedicated Circuit Breakers (A)	1*25	1*25	1*32	1*32	1*32	1*32	1*40	1*40	1*40
Efficiency	98%	98%	98%	98%	98%	98%	98%	98%	98%
Min. Required Wire (AWG)	1*12	1*12	1*12	1*10	1*10	1*10	1*10	1*10	1*10
Activated Flow (GPM)	0.3	0.3	0.3	0.3	0.4	0.4	0.4	0.4	0.4
Temperature Setting Rang(℉)	86 - 140
Unit Dimensions (inch)	9.847.682.17
Water Connections (NPT)	1/2'NPT

Usage Scenario	Sink of Use					Point of Use
Wattag (kW)	4	4.5	5	5.5	6	6.5	7	7.5	8
Voltage (V)	220
Rated Current (A)	18	20.4	22.7	25	27	29.5	31.8	34	36
Required Number of Dedicated Circuit Breakers (A)	25	25	32	32	32	32	40	40	40
Efficiency	98%	98%	98%	98%	98%	98%	98%	98%	98%
Min. Required Wire (m㎡)	2.5	2.5	4	4	4	4	6	6	6
Activated Flow (L/min)	1.2	1.2	1.2	1.2	1.5	1.5	1.5	1.5	1.5
Temperature Setting Rang(℃)	30 - 60
Unit Dimensions (mm)	25019555
Water Connections (G)	G1/2'
