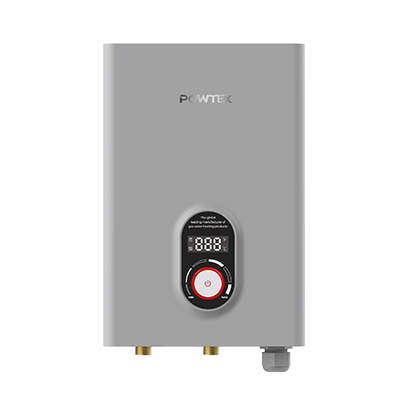

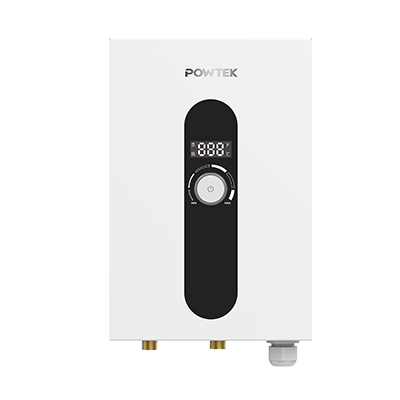

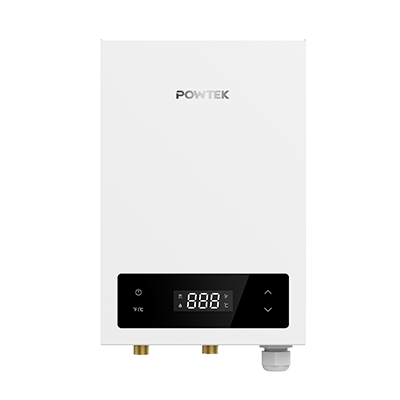

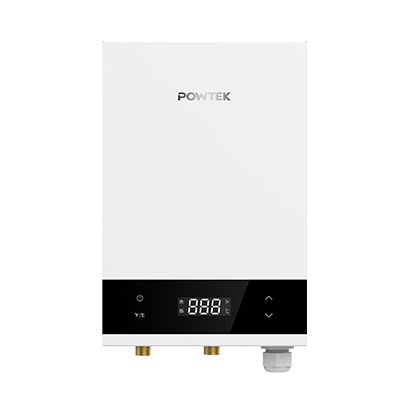

High quality metal shell suitable for outdoor and indoor environments
New generation self-developed aluminum alloy heating element, higher efficient heating exchange
Instant water heating supply, intelligent and stable temperature output even pipe flow fluctuates
Patented self developed automatic energy-saving constant temperature technology
Weak current PCB design makes the unit more safe and stable for using
All copper inlet and outlet valve, 304 stainless steel internal pipe
Designed wa
| Wattag (kW) | 8 | 10 | 11 | 12 | 14.6 |
| Voltage (V) | 240 | ||||
| Rated Current (A) | 34 | 42 | 46 | 50 | 61 |
| Required Number of Dedicated Circuit Breakers (A) | 1*40 | 1*50 | 1*50 | 1*63 | 1*63 |
| Min. Required Wire (AWG) | 1*10 | 1*8 | 1*8 | 1*6 | 1*6 |
| Activated Flow (GPM) | 0.4 | 0.4 | 0.4 | 0.4 | 0.48 |
| Efficiency | 98% | ||||
| Temperature Setting Rang(℉) | 86 - 140 | ||||
| Unit Dimensions (inch) | 14.30*9.57*2.80 | ||||
| Water Connections (NPT) | 1/2'NPT | ||||
| Weight of Unit (lbs) | 12.57 | ||||
| Wattag (kW) | 8 | 10 | 11 | 12 |
| Voltage (V) | 220 | |||
| Rated Current (A) | 33.6 | 45.5 | 50 | 54 |
| Required Number of Dedicated Circuit Breakers (A) | 40 | 63 | 63 | 63 |
| Min. Required Wire (m㎡) | 10 | 8 | 8 | 6 |
| Activated Flow (L/min) | 1.5 | 1.5 | 1.5 | 1.5 |
| Efficiency | 98% | |||
| Temperature Setting Rang(℃) | 30 - 60 | |||
| Unit Dimensions (mm) | 363*243*71 | |||
| Water Connections (G) | G1/2' | |||
| Weight of Unit (kg) | 5.7 | |||
